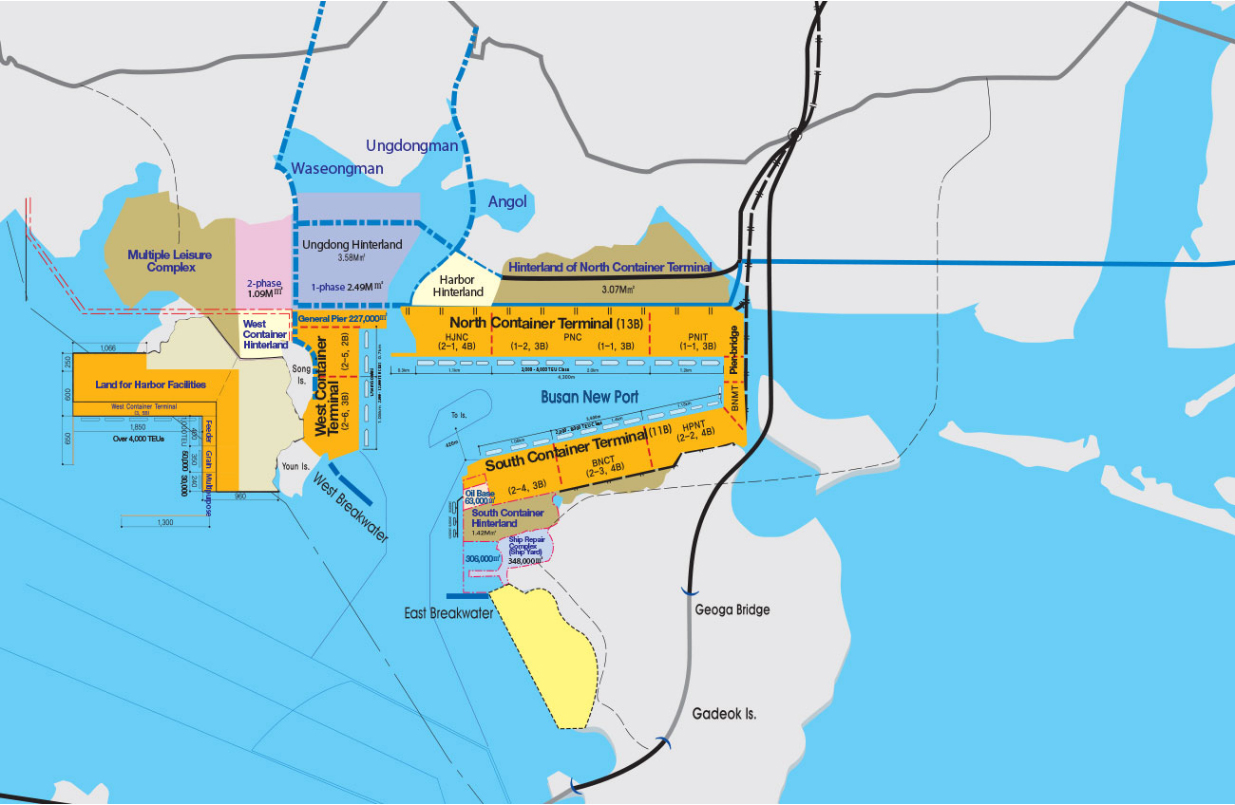

Busan Port at a Glance
Opened in 2006, Busan New Port boasts water depth of over 17m and up-to-date facilities capable of accommodating vessels of 19,000TEU.
Busan New Port can handle over 10million TEU annually,
with its 23 container berths.
New Port TML 1 | New Port TML 2 | New Port TML 3 | New Port TML 4 | New Port TML 5 | New Port TML 6 | ||
---|---|---|---|---|---|---|---|
Commencement of operation | 2010.3 | 2006 | 2009.2 | 2010.2 | 2012.1 | 2022.8 | |
Terminal Operator | Pusan New Port International Terminal (PNIT) | Pusan New Port Company (PNC) | Hanjin Busan New Port Co. (HJNC) | HMM PSA New Port Terminal | Busan New Container Terminal Co., Ltd (BNCT) | Busan Container Terminal Corp. (BCT) | |
Quay Length | 1,200m | 2,000m | 1,100m | 1,150m | 1,400m | 1,050m | |
Water Depth | 16m | 16 ~ 17m | 17m | 16~17m | 17m | 18m | |
Handling Capacity | 2,091,000TEU | 3,791,000TEU | 2,310,000TEU | 1,936,000TEU | 2,440,000TEU | 1,950,000TEU | |
Berth Capacity (DWT * Ships) | 50,000*3 | 50,000*6 | 50,000*2 | 50,000*2 | 50000*4 | 50,000*3 | |
20,000*2 | 20,000*2 | ||||||
Port Facilities | Site area | 840,000㎡ | 1,210,000㎡ | 688,000㎡ | 553,000㎡ | 785,000㎡ | 631,000㎡ |
CY area | 294,400㎡ | 525,000㎡ | 373,000㎡ | 213,000㎡ | 440,000㎡ | 350,000㎡ | |
Building area | 19,600㎡ | 11,000㎡ | 15,700㎡ | 10,300㎡ | 7,800㎡ | 5,000㎡ | |
CFS | - | - | 1,100㎡ | - | - | - | |
Rail transport + Service drop | - | 1200m | - | - | - | - | |
Unloading device | C/C | 12ea | 22ea | 12ea | 12ea | 14ea | 11ea |
T/C | 42ea | 69ea | 42ea | 38ea | 52ea | 44ea | |
S/C | - | - | - | - | 36ea | 28ea | |
R/S | 3ea | 5ea | 3ea | 4ea | 4ea | 2ea | |
Y/T | 154ea | 96ea | 85ea | 10ea | 10ea | ||
Chassis | 16ea | 312ea | 213ea | 160ea | 71ea | 70ea | |
E/H | 6ea | 17ea | 9ea | 3ea | 4ea | 2ea | |
F/L | 12ea | 22ea | 22ea | 1ea | 6ea | 7ea |
